Durable NPT Barrel Nipple | SS & Brass Fittings

Durable NPT Barrel Nipple | SS & Brass Fittings

Aug . 06, 2025

In the intricate world of fluid and gas transfer systems, the reliability of every single component is paramount. Among these critical parts, the npt barrel nipple stands as a fundamental connector, ensuring leak-proof and durable seals in countless industrial applications. This comprehensive guide delves into the technical specifications, manufacturing excellence, and strategic application of these essential fittings, with a special focus on our high-performance Black Barrel Nipples. Understand the technology, compare your options, and discover why precision engineering matters.

Explore Our Black Barrel Nipples

Industry Trends: The Evolving Landscape of Pipe Fittings

The global pipe fittings market is not static; it's a dynamic field driven by technological advancements, stricter environmental regulations, and the ever-growing demand for efficiency and longevity. Current trends indicate a significant shift towards high-grade materials and precision manufacturing. Industry analysts project the market to grow at a CAGR of 5.2% from 2023 to 2030, with a notable increase in demand for corrosion-resistant alloys and certified components. The focus is moving from simple functionality to long-term value, emphasizing total cost of ownership over initial price. This is where a superior npt barrel nipple, whether a standard carbon steel, a robust ss barrel nipple (stainless steel), or a versatile brass barrel nipple, becomes a strategic asset rather than a mere commodity.

Durable NPT Barrel Nipple | SS & Brass Fittings

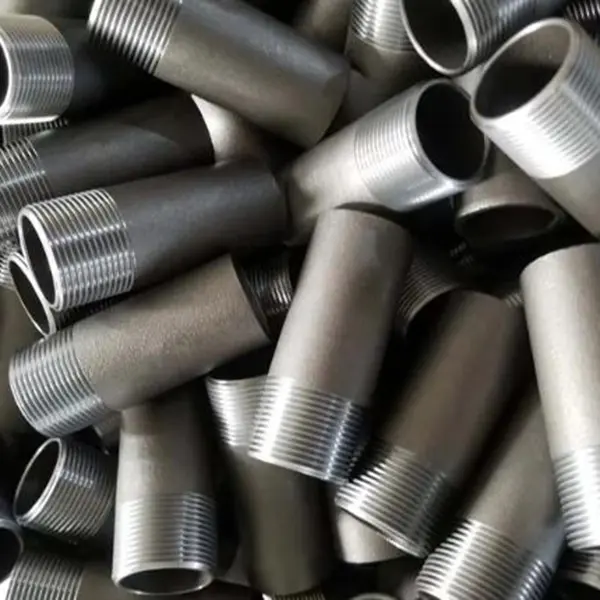

Precision-engineered NPT Barrel Nipples are crucial for system integrity.

Technical Deep Dive: Understanding the NPT Barrel Nipple

To truly appreciate the value of a high-quality fitting, one must understand its core technical attributes. The term "npt barrel nipple" itself contains two key pieces of information: the thread standard (NPT) and the form factor (Barrel Nipple).

NPT (National Pipe Thread): This is the U.S. standard for tapered threads used on pipes and fittings, defined by the ANSI/ASME B1.20.1 standard. The tapered design (1° 47' taper) allows the threads to tighten and form a seal (thread seal) when torqued. This "metal-to-metal" sealing design is incredibly robust but often requires a sealant like PTFE tape or pipe dope to ensure a 100% leak-proof connection, especially in high-pressure or gas applications.
Barrel Nipple: This refers to a short piece of pipe, typically threaded on both ends with male NPT threads. Unlike a "close nipple," where the threads practically touch, a barrel nipple has a small, unthreaded section in the middle, which provides structural integrity and a surface for a pipe wrench.

Comprehensive Technical Specification Table

Selecting the right npt barrel nipple requires a careful review of its specifications against the application's demands. Below is a comprehensive table outlining typical parameters for different material types.

Parameter	Carbon Steel (e.g., Black Barrel Nipple)	SS Barrel Nipple (304/316)	Brass Barrel Nipple
Material Standard	ASTM A53 / A106 Grade B	ASTM A312 (Seamless) / A778 (Welded)	ASTM B43 / B121
Thread Standard	ANSI/ASME B1.20.1 (NPT)
Size Range	1/8" to 8" (Larger sizes available via custom order)
Pressure Rating	Class 150 / 3000# (Varies with Schedule)	Class 150 / 2000#	Class 125
Schedules	Schedule 40, Schedule 80, Schedule 160, XXS	Schedule 10, Schedule 40, Schedule 80	Standard Wall
Temperature Range	-20°F to 450°F (-29°C to 232°C)	-325°F to 1500°F (-198°C to 816°C) for 304/316	-325°F to 400°F (-198°C to 204°C)
Corrosion Resistance	Fair (Improved with coatings like black oxide)	Excellent (316 > 304 for chlorides)	Good (Resists water, many chemicals)
Common Applications	General industrial, oil & gas, steam, water, air	Chemical processing, food & beverage, marine, pharmaceutical	Plumbing, HVAC, instrumentation, low-pressure gas

The Art of Manufacturing: A Detailed Process Flow

The performance and reliability of an npt barrel nipple are not accidental; they are the direct result of a meticulous and controlled manufacturing process. As an ISO 9001:2015 certified manufacturer, we adhere to the highest standards at every stage. Here’s a transparent look at how our Black Barrel Nipples are made:

Raw Material Selection & Verification

Process begins with sourcing high-grade carbon steel pipes (ASTM A53/A106). Each batch undergoes spectral analysis to verify chemical composition and ensure it meets stringent quality benchmarks for strength and durability.

↓

Precision Cutting

Pipes are cut to specified nipple lengths using automated, high-speed saws. This ensures uniformity and perpendicular ends, which is critical for proper thread engagement later.

↓

CNC Thread Machining

This is the most critical step. Each nipple end is machined on a state-of-the-art CNC lathe to create precise NPT threads according to ANSI B1.20.1. CNC control guarantees perfect taper, pitch, and depth for a reliable seal.

↓

Deburring and Chamfering

After threading, ends are deburred and chamfered. This removes sharp edges, prevents thread galling, and facilitates smooth, easy installation in the field.

↓

Surface Treatment (Black Oxide Coating)

The nipples are treated with a black oxide finish. This isn't just for aesthetics; this conversion coating provides a mild layer of corrosion resistance and prevents rusting during storage and pre-installation.

↓

Rigorous Quality Control & Inspection

A multi-point inspection is performed on every batch. This includes: go/no-go thread gauge testing, dimensional verification with digital calipers, and visual inspection for surface defects. Pressure testing is performed on a statistical basis.

↓

Packaging and Labeling

Finished nipples are carefully packaged to protect threads and finish during transit. Each box is clearly labeled with size, material, schedule, and heat lot number for full traceability.

Technical Advantages & Data-Driven Performance

Not all barrel nipples are created equal. Our Black Barrel Nipples, manufactured through the process detailed above, offer tangible advantages that translate into better performance, lower maintenance, and enhanced safety. Let's look at the data.

Performance Metrics: SZpipefitting vs. Generic Alternatives

Tensile Strength Comparison (ASTM A106 Gr. B)

Our nipples consistently exceed the minimum ASTM tensile strength requirements, providing a higher safety margin.

Corrosion Resistance (Salt Spray Test - ASTM B117)

The black oxide finish provides significantly longer resistance to red rust compared to uncoated steel.

Material Composition Integrity

Precise control of material composition, especially limiting impurities like sulfur and phosphorus, is key to weldability and strength.

Manufacturer Comparison: Why Choose SZpipefitting?

When sourcing a critical component like an npt barrel nipple, your choice of manufacturer is as important as the product itself. It's a decision about quality, reliability, and partnership. Here’s how SZpipefitting stands out:

Material options like stainless steel (ss barrel nipple) and brass offer solutions for diverse corrosive environments.

Feature	SZpipefitting	Competitor A (Generic Supplier)	Competitor B (Local Distributor)
Certifications	ISO 9001:2015, Mill Test Reports (MTRs) available	Often none or unverified	Varies by sourced product
Material Traceability	Full heat lot traceability from raw material to finished product	Limited or non-existent	Dependent on their supplier
Manufacturing Control	In-house CNC machining and quality control	Outsourced, inconsistent processes	No manufacturing control
Customization	Yes (custom lengths, materials, special threading)	No, standard sizes only	Limited to available stock
Technical Support	Expert engineering support for application queries	Basic sales support	General product knowledge
Warranty	Comprehensive manufacturer's warranty	Limited or return-only policy	Pass-through warranty, if any

Customization Solutions for Unique Applications

Standard off-the-shelf components don't always fit complex or specialized industrial systems. We recognize that our clients often face unique challenges that require tailored solutions. Our engineering and manufacturing capabilities allow us to offer a wide range of customization options for any npt barrel nipple:

Custom Lengths: From extra-short "close" nipples to long nipples for specific spacing requirements, we can cut and thread to your exact length with tight tolerances.
Exotic Materials: Beyond carbon steel, ss barrel nipple (316L, Duplex), and brass barrel nipple, we can source and machine fittings from alloys like Monel, Inconel, or Hastelloy for highly corrosive or high-temperature environments.
Combination Threads: Need a fitting with NPT on one end and BSPT or another thread standard on the other? Our CNC capabilities make this a straightforward process.
Specialty Coatings: For extreme environments, we can provide coatings beyond black oxide, such as hot-dip galvanizing (HDG), PTFE, or other anti-corrosion treatments.

Application Case Study: Enhancing Pipeline Integrity in a Petrochemical Plant

The Challenge

A major petrochemical processing facility in the Gulf Coast region was experiencing recurrent failures in their secondary cooling water lines. The existing, low-grade carbon steel nipples were succumbing to accelerated corrosion, leading to minor leaks. These leaks, while not critical, resulted in costly downtime for repairs, safety concerns, and environmental compliance issues.

The Solution

Our technical team was consulted to provide a more robust and cost-effective solution. After analyzing the water chemistry and operating temperatures, we recommended replacing the failing components with our npt barrel nipple, specifically the Schedule 80 Black Barrel Nipples. The thicker wall of the Sch 80 provided a greater corrosion allowance, and our controlled manufacturing process ensured a perfect thread seal, eliminating the primary failure point.

A properly installed npt barrel nipple is a cornerstone of a safe and efficient piping network.

The Result

The facility implemented our solution across a 500-meter section of the plant. Over the subsequent 24 months, the results were definitive:

Zero leak-related maintenance calls in the upgraded section.
An estimated 30% reduction in maintenance costs for that line.
Increased operational confidence and safety, allowing maintenance teams to focus on more critical process areas.
The project's ROI was achieved in just 11 months due to the savings from avoided downtime.

"The switch to SZpipefitting's barrel nipples was a game-changer for our plant's reliability. The quality is evident right out of the box, and the performance speaks for itself. We've seen a dramatic drop in nuisance leaks, which has had a real impact on our bottom line and safety record. Their technical support was invaluable in helping us select the right product." - Lead Mechanical Engineer, Gulf Coast Petrochemical

Building Trust: Our Commitment to You

🛡️

Quality Guarantee

We stand behind every npt barrel nipple we produce. Our products come with a comprehensive warranty against manufacturing defects, backed by our ISO 9001 certified quality management system.

🚚

Reliable Delivery

We understand that project timelines are critical. With an efficient production schedule and robust logistics, we offer clear delivery timelines. Standard orders typically ship within 3-5 business days, with expedited options available.

💬

Dedicated Customer Support

Our relationship doesn't end at the sale. Our team of fitting experts is available to provide post-sale support, installation guidance, and help with any technical questions you may have. Your success is our success.

Frequently Asked Questions (FAQ)

1. What does NPT stand for and why is it crucial for a barrel nipple?

NPT stands for National Pipe Thread, which is the U.S. standard for tapered threads used to join pipes and fittings. The taper is the key feature; as the male and female threads are tightened, the flanks of the threads compress against each other, creating a strong, rigid, metal-to-metal seal. This is crucial for a npt barrel nipple because it ensures the connection can withstand significant pressure without leaking. For a truly leak-proof seal, especially with gases or high-pressure fluids, a thread sealant like PTFE tape is always recommended.

2. What is the main difference between an ss barrel nipple and a brass barrel nipple?

The primary difference is the material and its properties. An ss barrel nipple (stainless steel, typically grades 304 or 316) offers superior corrosion resistance, especially against aggressive chemicals and high temperatures, making it ideal for chemical processing, food/beverage, and marine applications. A brass barrel nipple offers good corrosion resistance to water and is easier to machine, making it a common choice for plumbing, HVAC, and general-purpose low-pressure applications. Brass is generally not suitable for very high temperatures or acidic/alkaline environments where stainless steel excels.

3. How do I choose the right Schedule (e.g., Sch 40 vs. Sch 80) for my application?

The "Schedule" number relates to the wall thickness of the pipe nipple. A higher schedule number means a thicker wall.

Schedule 40 (Sch 40): This is the standard wall thickness and is suitable for a wide range of common applications, including commercial water lines and general industrial air/fluid transfer.
Schedule 80 (Sch 80): This has a thicker wall, resulting in a higher pressure rating and greater structural rigidity. It is specified for more demanding applications, such as high-pressure systems, lines carrying corrosive fluids (as it provides a greater corrosion allowance), and where external mechanical stress is a concern.

The choice depends on your system's operating pressure, temperature, and the nature of the fluid being transported. Always consult your project's piping specifications or an engineer.

4. What is the black coating on your barrel nipples and what is its purpose?

The coating on our Black Barrel Nipples is a 'black oxide' finish, also known as blackening or gun bluing. It's a chemical conversion coating, meaning it's not a layer of paint but an integral part of the steel's surface. Its primary purposes are:

Mild Corrosion Resistance: It protects the npt barrel nipple from rusting during storage and handling before installation.
Anti-Galling: It provides some lubricity to the threads, reducing the risk of galling (seizing) during assembly.

It is not intended for long-term protection against harsh external environments; for that, hot-dip galvanizing or stainless steel would be a better choice.

5. Are your npt barrel nipples suitable for potable water systems?

For potable (drinking) water systems, material selection is critical to prevent contamination. While standard Black Barrel Nipples are not typically used, we can provide options that are compliant. Galvanized steel nipples or, more commonly, ss barrel nipple (stainless steel) and brass barrel nipple variants that meet NSF/ANSI 61 standards are the recommended choices for potable water applications. Please specify this requirement when ordering so we can provide the correctly certified product.

6. What quality control tests are performed on your fittings?

Our quality control is multi-faceted and conforms to our ISO 9001:2015 system. Key tests include:

Material Verification: Spectral analysis of raw materials.
Dimensional Checks: Using calibrated digital calipers to verify length, diameter, and concentricity.
Thread Inspection: Every batch is checked with certified NPT go/no-go ring gauges to ensure thread conformity to ANSI B1.20.1.
Visual Inspection: Checking for surface defects, proper coating, and clear markings.
Pressure Testing: Hydrostatic testing is performed on a statistical sample basis to verify the fitting's pressure-holding capability. Mill Test Reports (MTRs) are available upon request for full traceability.

7. How should I properly install an npt barrel nipple to prevent leaks?

Proper installation is key to a leak-free NPT connection. Follow these steps:

Clean Threads: Ensure both male (nipple) and female (fitting) threads are clean and free of debris.
Apply Sealant: Apply a suitable thread sealant. For PTFE tape, wrap 2-3 times in the direction of the threads on the male fitting. For liquid/paste sealant, apply a thin, even coat to the male threads.
Hand Tighten: Screw the npt barrel nipple into the fitting by hand until it is "finger-tight."
Wrench Tighten: Using a proper pipe wrench on the nipple's barrel (not the threads), tighten an additional 1.5 to 3 full turns past finger-tight. The exact amount depends on the size and material. Do not over-tighten, as this can damage the threads or crack the fitting. The goal is to achieve proper thread engagement and compression, not to bottom out the fitting.
