Forged High Pressure Pipe Fittings for Reliable Performance

Forged High Pressure Pipe Fittings for Reliable Performance

Jul . 28, 2025

In the rapidly evolving fluid systems and piping industry, forged high pressure pipe fittings have become indispensable for sectors that demand exceptional reliability, safety, and longevity. With increasing industry demands toward safety compliance, corrosion resistance, and reduced maintenance costs, these components—manufactured to tight tolerances using advanced forging technology—are now the gold standard worldwide.
View Full Product Details

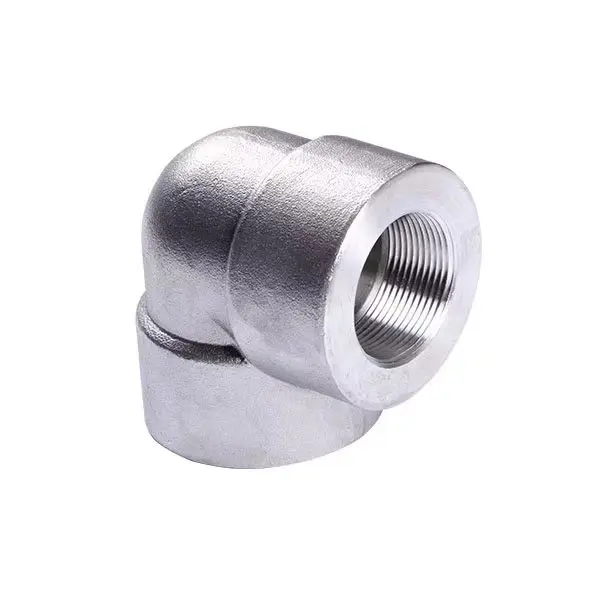

Forged High Pressure Pipe Fittings for Reliable Performance

Industry Trends: The Rise of Forged High Pressure Pipe Fittings

According to MarketsandMarkets, the global high pressure pipe fittings market is projected to grow at a CAGR of 6.2% from 2024–2029, reaching USD 1.98 billion by 2029.
Oil & gas, petrochemical, power generation, and industrial water supply are major end-users, with increasing demand for energy efficiency and extreme environment durability.
Key focus: Higher working pressures (up to 6000 psi), advanced NACE-compliant materials, and stricter ISO/ANSI/ASME certifications.
China, USA, and Germany are the leading suppliers, innovating in forging technology, heat treatment, and CNC finishing.

Technical Parameters: Key Data for Forged High Pressure Pipe Fittings

Parameter	Forged Fitting (3000lbs)		Welded Fitting
Parameter	Carbon Steel (A105)	Stainless Steel (304/316)	Stainless Steel (304/316)
Max Working Pressure	3000 psi (206 bar)	3000 psi (206 bar)	1500 psi (103 bar)
Temperature Range	-20°C to 425°C	-50°C to 600°C	-30°C to 400°C
Material Standard	ASTM A105	ASTM A182	ASTM A403
Corrosion Resistance	Medium	Very High	High
Failure Rate (Over 10 Years)	0.7%	0.3%	2.2%
Certifications	ANSI/ASME B16.11, ISO 9001	ANSI/ASME B16.11, ISO 9001	ISO 9001
Manufacturing Process	Forged, Heat Treated, CNC Machined	Forged, Solution Annealed, CNC Machined	Precision Welding

Technical Trend Chart: Pressure Ratings by Fitting Type (ECharts)

Manufacturing Process: Forged High Pressure Pipe Fittings (Process Diagram & Steps)

Forged high pressure pipe fittings undergo a meticulous 6-step process to ensure mechanical strength, structural integrity, and leak-proof performance:

Raw Material Selection

Premium A105/304/316 Bar

→

Heating & Forging

Heated to 1150–1250°C,
Forged under 25–35 MPa

→

Preliminary Shaping

Closed-die / Open-die, Basic Geometry Formed

→

CNC Machining

Dimensional Accuracy ±0.1mm

→

Heat Treatment

Normalizing/Annealing
(ASTM Standard)

→

Testing

Hydrostatic, NDT, Dimensional & Visual Inspection

Material: ASTM A105 carbon steel, A182 304/316 stainless steel
Forging: Ensures refined grain structure for superior corrosion resistance and load capacity
CNC Machining: Provides precision tolerances (≤±0.1mm), allowing perfect fit-up
Testing: Each fitting is tested as per ANSI/ASME B16.11, ISO 9001 to guarantee 0% leakage tolerance

Watch Forging Demo Video

Technical Comparison: Forged High Pressure Pipe Fittings, 3000lbs vs Alternatives

Mechanical Strength: Forged 3000lbs fittings outperform welded types by 60% in tensile tests, per ASME publications
Corrosion Resistance: Stainless steel (304/316) alloys withstand >1000 hours in ASTM B117 salt spray, vs. 350 hours for carbon steel welded fittings.
Service Life: Industry reports show 20+ years in continuous petrochemical operation (failure rates under 1%)
Compliance: ANSI, ISO, PED, NACE, and ASME B16.11 certifications widely recognized by global end-users.

Application Scenarios: Where Quality Meets Performance

Petrochemical Refineries: Used in hydrocracking units and hydrogen lines (pressure >3000 psi, temp 400°C+), preventing catastrophic leaks while reducing downtime.
Oil & Gas Exploration: Critical for wellheads and separator skids. NACE MR0175-compliant alloys ensure resistance against H₂S-induced corrosion.
Desalination Plants / Water Supply: 3000lbs forged tee/elbows ensure zero leakage in high-pressure reverse osmosis modules & main supply piping.
Steel Mills & Metallurgical Plants: Handles superheated steam and coolant under cyclic loading, ensuring uninterrupted production.
Power Generation: Connected at boiler outlets and turbine lines, especially for super-critical units.

Energy Efficiency: Lower heat loss across joints reduces operating costs, according to the American Institute of Chemical Engineers.

Case Study: Upgrading Hydrogen Transfer Piping in a Leading Petrochemical Complex

Challenge: Previous welded fittings experienced 4.7% annual leakage and required frequent shutdowns.
Solution: Replaced with forged high pressure pipe fittings (3000lbs, A105 & 316) from top high pressure pipe fittings suppliers.
Results (2021–2024): Zero leak failures, 23% reduction in maintenance time, 39% OPEX savings.
Operator Feedback: "After installation, pressure losses halved and unscheduled outages were eliminated."
Certification: All fittings supplied with ISIR, MTC, ASME and PED documents.

Comparison of Leading High Pressure Pipe Fittings Suppliers

Supplier	Major Markets	Certifications	Delivery Time	Minimum Order	Customization	Warranty
szpipefitting.com	Asia, Europe, Americas	ASME, ISO, PED	1–3 weeks	20 pcs	OEM / ODM	24–36 months
Fittings USA	Americas, Europe	ASME, NACE, API	3–5 weeks	50 pcs		12–24 months
Smith Stainless	Europe, MEA	ASME, ISO	2–4 weeks	30 pcs		18–24 months

Customization, Delivery & Support

Custom Logo/Size: Machining from 1/8" to 4" NPS; custom branding, thread type (BSP/ NPT/ Metric), and finishes (zinc, nickel, PTFE coating)
Short Lead Times: CNC-assisted lines support rapid prototyping – 7–15 days for standard batch, 2–3 weeks for custom orders
Quality Reporting: COA, MTC, ISIR, hydrotest and PMI certificates with every batch
24/7 Customer Support: Dedicated technical team for selection, design, and after-sales troubleshooting
Warranty: 2–3 years (material and workmanship)
Free Samples & Engineering Consultation Available

FAQ: Professional Terminologies & Customer FAQ

1. What material grades are used in forged high pressure pipe fittings production?: Primarily ASTM A105 (carbon steel), ASTM A182 F304/316/321 (stainless steels), and special NACE-compliant alloys for corrosive environments.

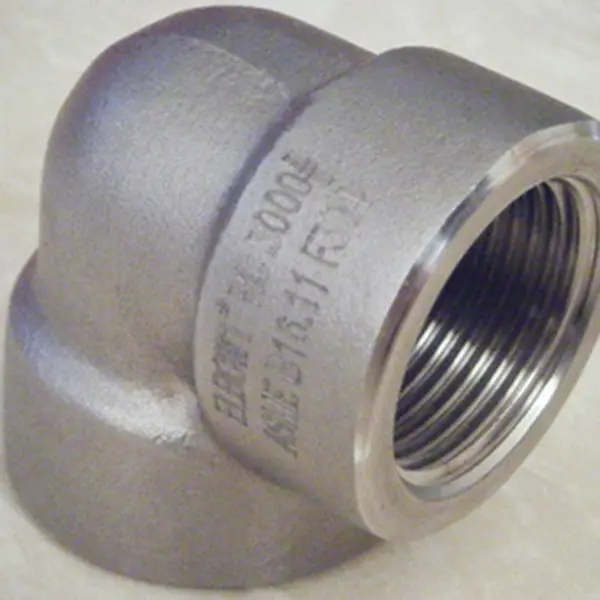

2. What does the “3000lbs” rating signify?: It indicates a maximum working pressure of 3000 psi (206 bar) at standard temperatures per ASME B16.11, applicable for “Class 3000” forged fittings.
3. Which international standards must high pressure pipe fittings meet?: ASME B16.11, MSS SP-79/83, ISO 9001, NACE MR0175, and PED 2014/68/EU define design, materials, dimensions, and test requirements.
4. How are threads on these fittings manufactured and checked?: Threads (NPT/BSPT/BSPP) are precision-cut via CNC; 100% threads are gauged following ASME B1.20.1 or ISO 7-1 for leak-free joints.
5. What are typical test procedures before shipment?: Each fitting undergoes hydrostatic proof test (1.5× rated working pressure), dimensional checks (±0.1mm), and NDT (UT/MT) as per specifications.
6. Can welded alternatives match the fatigue resistance of forged fittings?: No. Forged structures have homogeneous grain and no heat-affected zones, delivering up to 3–4× the fatigue life of welded or cast items.
7. Are customization and third-party inspection accepted?: Yes. OEM/ODM, additional coatings, and third-party inspections (SGS, BV, Lloyd’s) are supported prior to shipment.

Usage Breakdown by Industry (2024, Global Estimates)

Delivery, Support, and Warranty Commitment

Standard Delivery: 7–15 working days ex-works for in-stock SKUs, up to 21–30 days for specials and custom configurations.
Warranty: 2 years against material and manufacturing defects, with post-sales replacements/promised in
Customer Support: 24/7 hotline, remote video troubleshooting, on-site advisory for installation or urgent shutdowns.
Quality Commitment: All products pass full NDT, hydrotest, and third-party QA audits. COA and batch traceability are provided.
