Galvanized Iron Pipe Union BSP&NPT: Field Notes from the Malleable Iron Zone

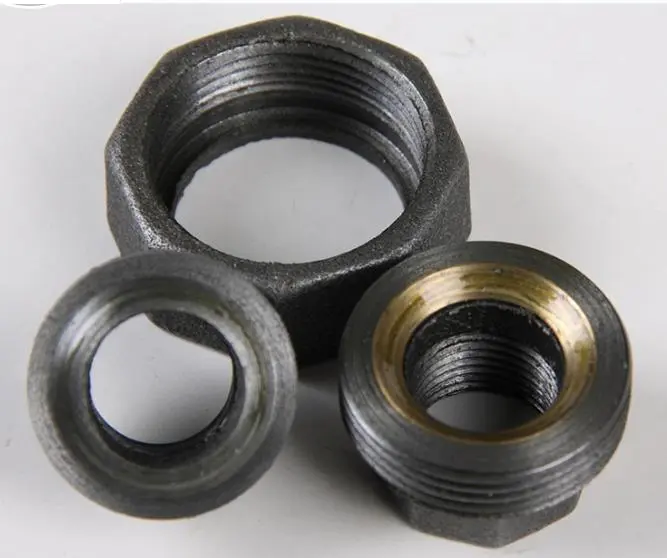

If you’re speccing unions for mixed-thread pipe runs, the first thing I check is the galvanized union—the small part that quietly prevents big headaches. Built in Shijiazhuang’s malleable iron corridor (Hebei, China), this model has become a bit of a workhorse on projects where water, oil, air, steam, or low-pressure gas share the same mechanical room. To be honest, the reason it keeps showing up in my notes is simple: consistent threads and a coating that behaves.

Where it fits in the real world

Typical placements: pump skid tie-ins, valve bypasses, heater swaps, and any maintenance point that needs fast disassembly. Many customers say the sealing is more forgiving than expected, likely thanks to the tight BSP/NPT threading and the malleable iron body that handles micro-misalignment better than rigid steel.

Key specs (lab and field)

Process flow (how it’s made and verified)

• Metal: controlled C 2.4–2.9%, Si 1.4–1.9%, Mn 0.4–0.65%, P and S kept low for ductility.
• Molding & annealing: creates the malleable matrix that resists cracking when tightened.
• Machining: threads to ISO 7/1 or ASME B1.20.1; spot gauges are actually used—saves field rework.
• Galvanizing: hot-dip per ISO 1461/ASTM A153 methods; coating thickness checked randomly.
• Testing: hydro to 2.5 MPa; sampling against ASME B16.3 dimensions; thread plug/ring gauges.
• Packing & traceability: export cartons, palletized if requested; batch numbers kept on labels.

Service life? Indoors with clean water, I’d budget ≈15–25 years. Coastal outdoor air or acidic condensate lines can cut that to ≈5–10 years unless you step up to heavier coating or add inhibitors. Your mileage will vary with TDS, temperature, and thread sealant choice.

Applications I actually see

Municipal water spurs, boiler rooms, compressed air drops, farm irrigation manifolds, light industrial steam (low pressure), and oil transfer on skids. Installers tell me the galvanized union saves a return trip when the pump base settles and they need to re-square a flange.

Vendor snapshot (why sourcing still matters)

Customization and logistics

Pick BSP or NPT, 1/4"–6", banded/beaded/plain. Packing: export cartons, pallets if needed. Private labeling is common. Shipment usually within 30 days after deposit—faster on repeat SKUs. If you need a galvanized union with heavier zinc or special seal seats, ask early; coating spec tweaks add a week or two.

Quick case file

A midwestern plant retrofitted 180 compressor drops. Switching to this galvanized union cut average install time by ≈12 minutes per drop. Six months later, leak rate audits showed less than 1% rework, which is… pleasantly boring.

Standards and references

1. ASME B16.3 — Malleable Iron Threaded Fittings
2. ISO 49 / EN 10242 — Malleable cast iron fittings
3. ISO 7-1 / ASME B1.20.1 — Pipe threads (BSP/NPT)
4. ISO 1461 / ASTM A153 — Hot-dip galvanizing of iron and steel
5. NACE SP0169 (now SP21424) — Control of External Corrosion on Underground or Submerged Metallic Piping
