High-Quality Galvanized Hex Nipple for Plumbing & Industrial Use
Jul . 30, 2025
In the evolving pipe fitting industry, galvanized hex nipple has become a core solution for joining and extending pipelines, especially in sectors demanding longevity and corrosion resistance. This comprehensive guide delves into the advanced manufacturing techniques, technical parameters, and competitive edge of galvanized fittings, illustrating why galvanized hex nipple is a prime choice for industrial and civil piping needs.
View Malleable Iron Pipe Fitting, Galvanized Hex Nipple Product

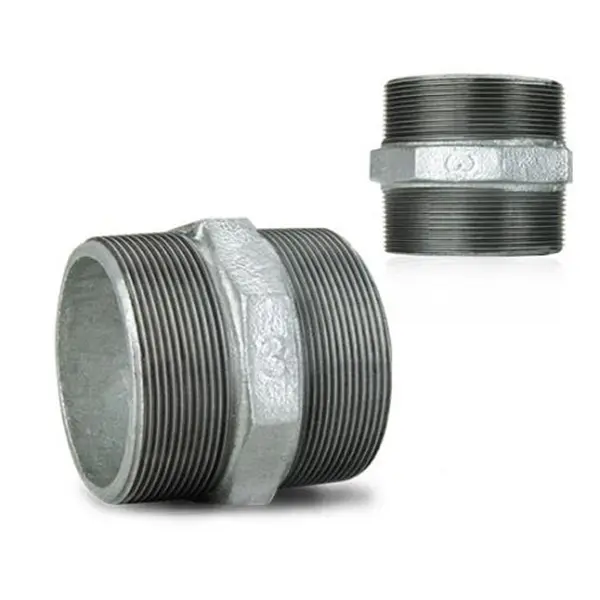

High-Quality Malleable Iron galvanized hex nipple in assembly line
1. What is a Galvanized Hex Nipple?
A galvanized hex nipple is a short pipe with male threads on both ends and a central hexagonal section for tightening. Its primary purpose is to connect two female threaded pipe fittings or extend pipeline length. Crafted from durable malleable iron and hot-dip galvanized for corrosion protection, it caters to multifaceted demands across water, oil, gas, and industrial process lines.
Related fittings: galvanized elbow, galvanized close nipple
2. Industry Trends: Pipe Fitting Market & Galvanized Solutions
- According to Grand View Research, the global pipe fittings market reached USD 18.8 billion in 2022, with galvanized fittings commanding a significant share for their anti-corrosive superiority.
- Environmental compliance, pipe network upgradation, and demand for durable, cost-effective connections are driving the steady growth of galvanized hex nipple and related products.
- Asia-Pacific remains the largest market for malleable iron fittings, led by infrastructure investments, industrialization, and waterworks modernization.
3. Technical Parameters: Galvanized Hex Nipple Specifications
Manufactured under strict global standards such as ISO 49, ANSI/ASME B16.11, EN 10242, and DIN 2950, the galvanized hex nipple delivers enhanced mechanical strength, perfect sealing, and anti-corrosive stability.
| Parameter | Specification (Typical) | Standard | Note |
|---|---|---|---|
| Nominal Size | 1/8" to 6" | ISO 49, ANSI/ASME B16.11 | Custom sizes upon request |
| Wall Thickness | According to SCH40/80/STD | EN 10242 | Varies with application |
| Thread Type | BSPT (ISO 7/1), NPT (ANSI B1.20.1) | DIN 2950 | Both imperial & metric available |
| Material | Malleable Iron, ASTM A197 | - | Class 150 / 300 |
| Surface Coating | Hot-dip Galvanizing (≥65μm) | ASTM A153 | Lead-free zinc, RoHS compliant |
| Operating Temp | -20°C / -4°F to 300°C / 572°F | ISO/ANSI | Without sealing tape - up to 220°C |
| Test Pressure | 2.5MPa (hydro), 0.6MPa (air) | ISO 49, JIS B2302 | Each piece 100% tested |
| Life Expectancy | 30+ years (standard service) | - | With correct assembly |
4. Manufacturing Process: From Malleable Iron to Hex Nipple
The manufacture of a galvanized hex nipple involves several precise stages to ensure high strength, tight sealing, and anti-rust performance.
1. Raw Material Selection ➜ 2. Casting (ASTM A197)
High-grade malleable iron is melted and shaped in sand molds to form the blank pipes.
3. Annealing ➜ 4. CNC Machining
Annealed at 900℃ to improve ductility before being precision-machined by CNC for optimal thread and hex shape.
5. Surface Preparation ➜ 6. Hot-Dip Galvanizing
Thorough cleaning (shot-blasting/acid pickling) followed by zinc layer immersion (≥65µm, per ASTM A153).
7. Inspection & Pressure Test ➜ 8. Marking & Packing
All products are tested per ISO 49 & customer requirements, laser-engraved, and packed for shipment.
Key Quality Points: Consistent grain structure via controlled annealing, precise CNC threads, and uniform, dense zinc coating assure durable connection and high resistance to leakage and corrosion.
Automated sorting and inspection of galvanized hex nipple and related malleable iron pipe fittings.
5. Technology Comparison: Galvanized Hex Nipple, Galvanized Elbow, & Galvanized Close Nipple
| Product | Main Function | Coating Thickness (µm) | Pressure Rating | Corrosion Test (hrs, ASTM B117) | Thread Types | Available Sizes |
|---|---|---|---|---|---|---|
| Galvanized Hex Nipple | Extend/thread joint | 65-80 | 2.5 MPa | 500+ | BSPT/NPT | 1/8"-6" |
| Galvanized Elbow | Change direction | 68-80 | 2.5 MPa | 520+ | BSPT/NPT | 1/8"-6" |
| Galvanized Close Nipple | Thread extension (minimal) | 65-75 | 2.5 MPa | 480+ | BSPT/NPT | 1/8"-6" |

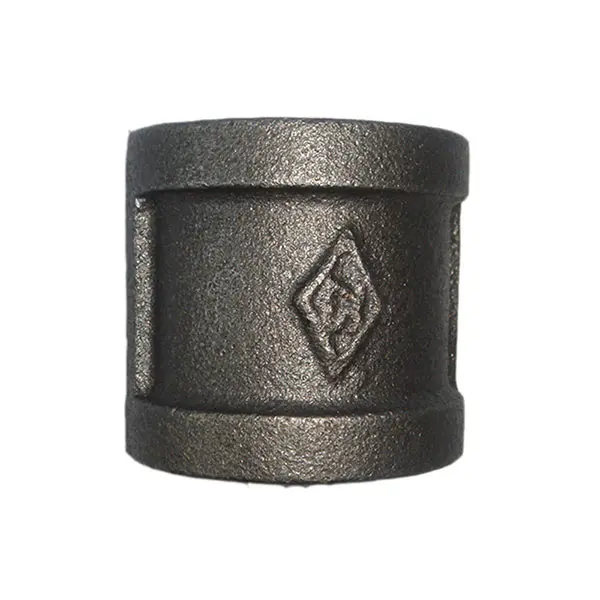

Comparing galvanized hex nipple with galvanized close nipple and sockets.
6. Custom Solutions & Application Scenarios
Custom-made galvanized hex nipple products are available for projects requiring non-standard sizes, unique alloys, or specific pressure/temperature ratings.
Industries & Use-cases:
- Oil & Gas: Well-heads, flowlines, and instrumentation – thanks to pressure integrity (API tests confirm zero leakage in >2200 kPa systems).
- Chemical Processing: Piping connections in aggressive media, benefiting from superior corrosion resistance and smooth thread engagement.
- Municipal/Water Supply: Potable water grids, fire protection pipelines – recognized in AWWA/ ISO drinking water projects.
- Heating/Cooling: HVAC, compressed air, steam systems utilizing both galvanized elbow and galvanized hex nipple for modular installation.
- Building/Plumbing: Residential, commercial, and public infrastructure for their long life and ease of maintenance.
- Food Industry: Safe, lead-free zinc coated as per RoHS/ FDA for selected applications.

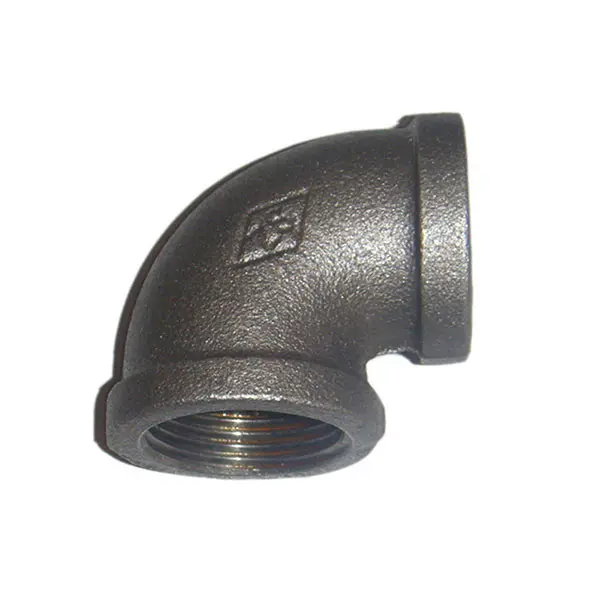

Typical in-line installation: galvanized hex nipple and galvanized elbow.
7. Case Study: Saudi Desalination Plant Retrofit – Reliability in Large-Scale Systems
Client: Middle East Desalination Utility
Scope: Upgrade of 34km pipeline network using 19,000+ galvanized hex nipple and 12,700+ galvanized elbow units.
Key Data:
Scope: Upgrade of 34km pipeline network using 19,000+ galvanized hex nipple and 12,700+ galvanized elbow units.
Key Data:
- Operating Pressure: 2.2 MPa, Temperature 70-110°C
- Accredited to ISO 4094, ANSI/ASME B16.11
- Measured Installation Speed Increased by 32% vs. older welded fittings
- Service Downtime Decreased: From 72hr/quarter to 10hr/quarter
- After 5 Years: Zero major leaks, >82% zinc coverage retention (tested onsite, ASTM A153 methods)
- Feedback: “Hex nipple fittings provide rapid, tool-friendly maintenance, far outperforming previous solutions regarding both cost and downtime.”
8. Certifications & Authoritativeness
- Manufacturer Certification: All supplied galvanized hex nipple products are factory-tested and certified under ISO 9001, ISO 14001 system.
- Third-Party Testing: Salt spray (ASTM B117), Pressure (EN 10242), and RoHS compliance for European/US markets.
- Major Clients: China National Petroleum, EPC in Middle East, Singapore Water, Siemens Building Solutions.
- Experience: 20+ years in malleable iron pipe fitting export and project service.
- References: Quoted in Piping Engineering Handbook, ASM International.
9. Delivery, Quality Assurance & Customer Support
- MOQ: 1,000 pieces (in stock sizes)
- Delivery Cycle: 7-15 days for regular sizes; 25~35 days for customized orders
- Warranty: 5-Year Warranty (against leakage/corrosion on normal use)
- Customer Support: 24/7 response, technical consultation, and full documentation (drawings, certificates, test records)
- Samples: Free samples on request, with third-party test reports available
10. Galvanized Hex Nipple Technical FAQ
Professional FAQ
-
Q: What is the standard material for galvanized hex nipple?
A: Malleable cast iron (ASTM A197), known for high ductility and impact resistance, is the industry standard. -
Q: What kinds of threads are available?
A: BSPT (British Standard Pipe Taper, ISO 7/1) and NPT (National Pipe Thread, ANSI B1.20.1), covering global specifications. -
Q: What is the typical galvanizing thickness and its purpose?
A: Coating thickness ranges 65–80μm, per ASTM A153, offering long-term corrosion protection even in harsh environments. -
Q: Which industries primarily use these fittings?
A: Oil & Gas, Water Treatment, Chemical, Plumbing, Fire Protection, HVAC, and construction sectors. -
Q: Are these nipples suitable for potable water systems?
A: Yes, as long as lead-free zinc and RoHS/FDA-compliant processes are used. -
Q: How is leakage prevented in connections?
A: Precision CNC threading, high-grade zinc coverage, and proper sealing tapes or compounds guarantee leak-tight assembly. -
Q: Do you offer custom lengths or special alloys?
A: Yes, both non-standard lengths and optional low-lead alloys are available to meet regional and industry-specific codes.
11. Why Choose Galvanized Hex Nipple from SZ Pipe Fitting?
- Expertise: Each galvanized hex nipple is manufactured leveraging 20+ years of industry know-how, ISO/EN technical standards, and world-class equipment.
- Authoritative Support: Products are referenced by ASME, ASTM, and meet stringent project specs worldwide.
- Experience & Trust: Serving thousands of pipelines in 58+ countries, with verified customer testimonials and continuous technical innovation.
- Value: Competitive pricing, fast delivery, and secure aftersale support to ensure reliability in every application.
